X-12S™ | 8 Relay Expansion Module

$179.99

The X-12s™ eight-relay expansion module is used with an X-400™ or X-600M™ controller. The relays are 2.5A Form-A (SPDT) with commons tied together in two groups. A removable terminal connector provides connections to the relays. One or more X-12s expansion modules can be connected with a ribbon cable that provides both power and communication.

8 Relays

Expansion Module for the X-400 or X-600M

Frequently Bought Together

Fast, secure checkout!

  • Most products ship same day
  • 30-day return policy
  • Responsive technical support

An X-400 or X-600M connected with an expansion module like the X-12S provides an easy, flexible, and reliable way to monitor and control systems and devices over a network. The X-12S is a great fit in applications with moderate loads, including alarm panels, low-power LED lighting, and simple dry contact closures.

X-12S Features

  • Eight large SPDT relays (independently controlled)
    • Voltage: 125VAC, 30VDC
    • Current: 2.5A (total for each group of 4 relays with shared commons)
  • Removable connector
  • Eight Relay LEDs
  • Powered through expansion bus (no separate power supply connections are required)

X-12S Master Devices

  • X-400 and X-400C with Cell Icon

    X-400™ | Modular I/O Controller

    $299.99$399.99
    X-400-I,X-400C-I-CA
    The X-400™ is a web-enabled controller that allows for up to 32 added expansion modules and/or remote I/O devices. Expansion modules are connected directly to the X-400 via ribbon cable, or remotely with other CBW devices via P2P—allowing for monitoring and control of up to 64 I/O.

    The X-400C offers wireless capability with a built-in, low-power LTE-M cellular radio. Cellular models with an annual data plan include a dual SIM that provides combined coverage through AT&T and T-Mobile, automatically switching between the two for the best coverage.

    Expandable, Up to 64 I/O

    Relays, Analog & Digital Inputs

    Up to 16 temp sensors

    Cellular version available

    [frequentlyBought ids="7635,34491,7624,7577"]

    View Product
  • X-600M Industrial I/O Web Controller

    X-600M™ | Web-Enabled I/O Controller

    $549.99
    X-600M-I
    The X-600M™ is one of the most capable and flexible ControlByWeb PLCs. Add up to 64 expansion modules and remotely monitor and control up to 1,024 I/O. Create custom logic through the X-600M interface and run your application through a built-in web server and web browser.
    • Expandable, Up to 1,024 I/O
    • Relays, Analog/Digital/Thermocouple Inputs
    • Up to 32 Temperature Sensors
    • GUI Dashboard

    [frequentlyBought ids="7635,7621,7577,7798"]

    View Product



(Example images are shown. Label and terminal connector may differ)

Specifications


Power Requirements
  • Voltage: 9-28 VDC (supplied via the X-400 or X-600M controller, 24V recommended)
  • Max Current: See table below for typical values at 25°C.
Power Supply All Relays OFF All Relays ON
9 VDC 16 mA 344 mA
12 VDC 12 mA 258 mA
24 VDC 7 mA 133 mA
Relay Contacts
  • Number of Relays: 8
  • Max Voltage: 125VAC, 30VDC
  • Max Current: 2.5A (total for each group of 4 relays with shared commons)
  • Contact Type: SPST (Form A)
  • Load Type: General Purpose
  • Contact Resistance: < 100 milliohms initial
  • Contact Material: AgNi
  • Electrical Life: 100K operations (Min)
  • Mechanical Life: 5M cycles (Min)
  • Environmental Rating: Over voltage Category II, Pollution Degree 2
  • Relay Modes: On/Off or Pulsed
  • Pulse Timer Duration: 0.1 to 86,400 Seconds (1-day)
Connectors
  • Relays: 14-Position, 3.81mm terminal spacing, Removable. For 16-28 AWG wire.
  • Expansion Connector: Ribbon cable, 10-conductor, polarized, 2×5-position, 0.100″ pitch Provides power and communications for expansion modules (Communications: RS-485)
LED Indicators
  • Number of LEDs: 9
    • Power on
    • Relay coil energized 1-8
Physical
  • Size:
    • 1.41in (35.7mm) wide
    • 3.88in (98.5mm) tall
    • 3.1in (78mm) deep (not including connector)
  • Weight: 4.8 oz (136 g)
  • Enclosure Material: Lexan 940 Polycarbonate Plastic
  • Enclosure Flame Rating: UL94 V0
Environmental
  • Operating Temperature: -40°F to 122°F (-40°C to 50°C)
  • Storage Temperature: -40°F to 185°F (-40°C to 85°C)
  • Humidity: 5-95%, non-condensing
  • Altitude: Up to 2,000m
  • Indoor use or NEMA-4 protected location
Electromagnetic Compliance
  • IEC CISPR 22, CISPR 24
  • FCC 47CFR15 (Class B)
  • EN55024 ITE Immunity (2010)
  • EN55022 Emissions (2010)
Product Safety Compliance
  • UL 61010-1 (Electrical Equipment for Measurement, Control, and Laboratory Use)

Manuals & Downloads


Other Downloads


X-12S 3D Model (.stp)

Accessories




Cloud Seat Icon

ControlByWeb Cloud Device Seat

Expansion Cable

Expansion Cable

For your convenience we have set up a live X-600M unit connected to its expansion modules (i.e., X-11S, X-12S, X-13S, X-15S ,and X-16S) for testing and evaluation. By clicking the links below you have full access to this live unit. You can make changes to the configuration and settings through the setup pages and you can control the expansion modules’ relays, and view the current status of the inputs, and monitor temperature (X-600M & X-13S) through its dashboard page.

X-600M™


Control Page Setup Pages*

*Setup page login information:

Username: admin

Password: webrelay

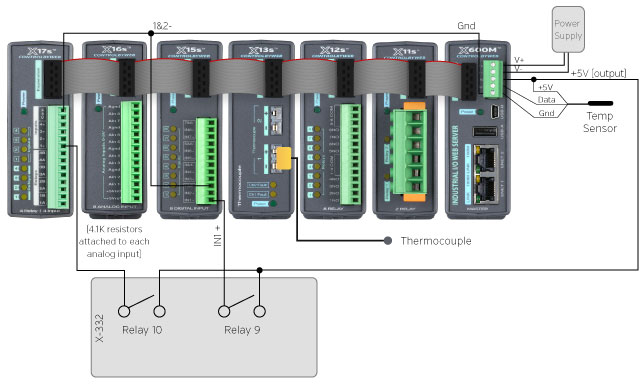

X-600M live demonstration setup

Live Demo With One of Our Sales Engineers

Let’s make it easy with a live demo and screen sharing.

Set up a one-on-one Q & A with one of our experts. We’ll help you find the best solutions for your next project and walk you through a demonstration.


Low on time? Watch a pre-recorded demo instead:

X-600M Setup and Programming Demo

X-600M Setup

The diagrams illustrate how this demonstration is wired. The relays on all expansion modules are not connected to a load; however, you can still access and control the relays by turning them on or off through the X-600M dashboard. The X-600M is also wired to a temperature sensor, and the X-13s is connected to a thermocouple. Both sensors can be monitored on the X-600M’s dashboard. The digital input states on the X-15s only changes when a voltage is applied to the inputs. For this demonstration, we have connected one of our X-332 controllers to Input 1 on the X-15s. You can apply a voltage to this input by accessing the control page for the X-332 (Digital Input Control Page).

Important Information

  • Multiple users may be accessing this device simultaneously so the device can change while you are using it.
  • This unit will be reset to factory defaults daily at 2:30AM MST.
  • Please DO NOT change network or password settings.
