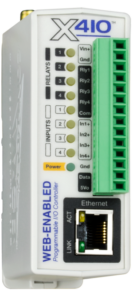

X-410™ | Edge Programmable Controller

$299.99$329.99

Simplify any industrial application with the X-410™—no code necessary. Automation is easy with its web-based interface, intuitive drop-down menus, and logic editor. Integrate different devices, sensors, and protocols to create a cohesive system that responds intelligently to changing conditions. Control lights, sensors, and more with built-in I/O and expandable modules.

4 Relays

4 Digital Inputs

Up to 16 temp sensors

Frequently Bought Together

Fast, secure checkout!

  • Most products ship same day
  • 30-day return policy
  • Responsive technical support
X-410 Overview

The X-410 is one of our most versatile PLCs. It can monitor up to 4 contacts and control up to 4 relays. This combination has proven to be very popular and extraordinarily flexible.

X-410 Features

  • Email Notifications
  • No-Code Logic Builder
  • Peer-to-Peer Communication
  • Data Logging
  • 400 Series Platform

X-410 Applications

  • Door & Access Control
  • Network Device Rebooting
  • Alarm Panel Monitoring
  • Motor Control

Integration Icon

Integration Ready

We support HTTP GET, XML, JSON, SNMP, Modbus TCP/IP, and our Cloud API with more on the way.

No-Code Logic Icon

No-Code Programmable Logic

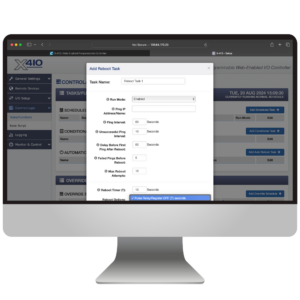

Our intuitive Task Builder empowers you to build custom logic using drop-down menus in an if-this-then-that flow.

Peer-to-Peer Icon

P2P Networking & Remote I/O

Devices can communicate through Peer-to-Peer (P2P) networking to share I/O among other ControlByWeb controllers, assign any device as master, set up multiple masters, and link remote inputs and relay control.

Email Notifications Icon

Email Notifications

Stay in control of operations with real-time monitoring. Add intelligence to your emails through programmable logic to instantly send notifications and eliminate false alarms.

Built-In Firmware Icon

Easy-to-Use Embedded UI

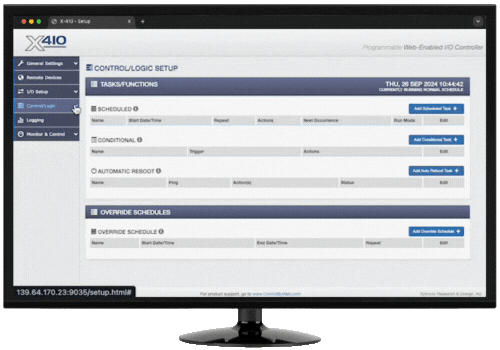

Our devices come with a simple embedded user interface that will enable you to easily monitor, manage, and control ControlByWeb PLCs from any standard web browser.

Data Logging Icon

Data Logging

Enjoy scheduled and conditional logging with email and FTP log exports. Add the optional ControlByWeb Cloud for remote access and downloadable logs.

Cloud Compatible Icon

Cloud Compatible

Enhance your capabilities with the ControlByWeb Cloud. Gain enhanced features such as simplified remote device access, data logging, and advanced analytics.

Security Icon

Trusted Device Security

Our controllers have no built-in OS or file system, making them less prone to vulnerabilities. Third-party consultants and government agencies test the cybersecurity of our controllers.

IIoT Icon

IIoT Monitoring & Control

Access the device directly through an assigned IP address. Set up your network settings the way you want, to limit or allow remote access through the cloud.



X-410 Case Studies

Specifications


Power Requirements
  • Voltage:
    • X-410-I: 9-28 VDC
    • X-410-E: POE and/or 9-28VDC
  • Max Current: 240mA
Relay Contacts
  • Number of Relays: 4
  • Max Voltage: 28VAC, 24VDC
  • Max Current: 1A
  • Contact Type: SPST (Form A) All Relays have a shared common
  • Load Type: General Purpose
  • Contact Resistance: 1 milliohm max
  • Contact Material: AgNi
  • Electrical Life: 100K operations (Min)
  • Mechanical Life: 5M cycles (Min)
  • Environmental Rating: Over voltage Category II, Pollution Degree 2
  • Relay Modes: ON/OFF or Pulsed
  • Pulse Timer Duration: 0.1 to 86,400 Seconds (1-day)
Digital Inputs
  • Number of Inputs: 4
  • Type: Optically-Isolated
  • Voltage Range: 4-26VDC
  • Current: 950uA @ 4V, 8.5mA @ 26V
  • Minimum Hold Time: 20ms
  • Input Functions: Monitor State, Control Relays, Control Remote Relays, Scalable Counter, On Timer, Total On Timer, Frequency
  • Maximum Count: 24-bit
  • Max Count Rate: 200Hz Max (Dependent on Configuration)
  • Edge Trigger: Rising, Falling or Both
Temperature Sensors
  • Maximum Number of Sensors: 16
  • Type: Digital 1-Wire (Maxim Semiconductor DS18B20)
  • Temperature Range: -67°F to 257°F (-55°C to +125°C)
  • Accuracy: ±0.5°C (from -10°C to +85°C)
  • Sensor Functions: Monitor Temperature, Log Temperature, Email Alerts, SNMP Traps
  • Humidity Type: ControlByWeb Model X-DTHS-P sensor
  • Humidity Range: 0-100% RH
  • Accuracy: ±2%
  • Max Cable Length: 600 feet (180m) maximum combined cable length
Real-Time Clock
  • Manual or NTP(Network Time Protocol) setup
  • NTP Sync Period: Once, Daily, Weekly, On Powerup
  • Auto Daylight Savings Adjustment
  • Battery (capacitor) Power Backup
Capacitor Power Backup
  • Backup Functions: Retain Real-Time Clock, 1 Register, 2 Counters, 4 Relay States
  • Backup Duration: 24 hours
Network
  • Type: 10/100 Base-T Ethernet Port
  • Setup: Static or DHCP IP address configuration
Connectors
  • Power, Outputs, and Inputs: 14-Position, 3.81mm, Removable
  • Network: 8-pin RJ-45
LED Indicators
  • Number of LEDs: 11
    • Power on
    • Relay coil energized 1-4
    • Digital Inputs 1-4
    • Network linked
    • Network activity
Physical
  • Operating Temperature: -40°F to 150°F (-40°C to 65.5°C)
  • Size:
    • 1.41in (35.7mm) wide
    • 3.88in (98.5mm) tall
    • 3.1in (78mm) deep (not including connector)
  • Weight: 5 oz (142 grams)
  • Enclosure Material: Lexan 940 Polycarbonate Plastic
  • Enclosure Flame Rating: UL94 V0
Protocols
  • HTTP, HTTPS, SSL, XML, Modbus TCP/IP, SNMP, SMTP, Remote Services
Logging
    • Log File Size: 512K (up to 8,448 logs)
    • Storage: Nonvolatile Flash
    • Buffer Architecture: Circular Buffer

Log data can be periodically stored on a computer via FTP or email.

Advanced Features
  • Task Builder
  • BASIC interpreter
  • Remote services
Password Settings
  • Password Length: 6-18 Characters
Electromagnetic Compliance
  • IEC CISPR 22, CISPR 24
  • EU EN55024, EN55022
  • X-410-I: FCC 47CFR15 (Class B)
  • X-410-E: FCC 47CFR15 (Class A)
Product Safety Compliance
  • IEC 61010-1

Manuals & Downloads



Downloads

Firmware

IMPORTANT: As a result of recent inline improvements to device hardware, different firmware versions have been created that are equal in functionality, but not cross-compatible. Installing the wrong firmware will not work. Please select the correct firmware for your current firmware version below:

X-410 Firmware v2.81 (for firmware versions 2.7 or lower)

X-410 Firmware v3.08 (for firmware versions 3.0 or higher)

Firmware updates work on any previous version as long as they are compatible. Note: versions 2.X and 3.X are equal in functionality, but not cross-compatible.

3D Model

X-410 3D Model (.stp)



Accessories




24V DIN Rail Power Supply

24V DIN Rail Power Supply

5VDC Water Sensor

5VDC Water Sensor

Cloud Seat Icon

ControlByWeb Cloud Device Seat

GRI-29C Magnetic Contact Sensor

GRI-29C Indoor Magnetic Contact Sensor

Magnetic Sensor Mount Kit

Magnetic Sensor Mount Kit

12VDC Power Supply

Power Supply | 12VDC

Temperature and humidity probe

Temperature/Humidity Sensor (Probe)

Vegapoint 11 Ultra-Compact Capacitive Limit Switch

VEGAPOINT 11 Capacitive Limit Switch

Vegapoint 21 Sensor

VEGAPOINT 21 Capacitive Limit Switch

Water-Resistant Digital Temperature Sensor 10 Meters Long

Water-Resistant Digital Temperature Sensor (10m)

Water-Resistant Digital Temperature Sensor 1 Meter Long

Water-Resistant Digital Temperature Sensor (1m)

Water-Resistant Digital Temperature Sensor 4 Meters Long

Water-Resistant Digital Temperature Sensor (4m)

Demo


For your convenience we have set up a live X-410 unit for testing and evaluation. By clicking the links below you have full access to this live unit. You can make changes to the configuration and settings through the setup pages and you can control X-410 through its control page. The control page allows you to change the state of the relay and view the current state of the input.

X-410™


Control Page Setup Pages*

*Setup page login information:

Username: admin

Password: webrelay

X-410 live demonstration setup

Live Demo With One of Our Sales Engineers

Let’s make it easy with a live demo and screen sharing.

Set up a one-on-one Q & A with one of our experts. We’ll help you find the best solutions for your next project and walk you through a demonstration.

Low on time? Watch a pre-recorded demo instead:

400 Series Setup and Programming Demo

X-410 Setup

The diagram illustrates how this demonstration is wired. Nothing is connected to the relay contacts; however, you can still turn the relay on and off to see how it works.

The input state only changes when a voltage is applied to the input. For this demonstration, we have connected one of our X-332 controllers to the input of the X-410. You can apply a voltage to the input of the X-410 by accessing the control page for the X-332 (Digital Input Control Page).

Important Information

  • Multiple users may be accessing this device simultaneously so the device can change while you are using it.
  • This unit will be reset to factory defaults daily at 2:30AM MST.
  • Please DO NOT change network or password settings.
