Expansion Cable


Expansion cables (10-conductor ribbon cable)

Connect to 400 or X-600M controller.

Fast, secure checkout!

  • Most products ship same day
  • 30-day return policy
  • Responsive technical support

Expansion cable the connects the X-600M to its expansion module. Provides both power and communication.


This cable is required to connect expansion modules to an X-400 or X-600M controller. The ribbon cable provides both communication and power connections to the expansion modules.

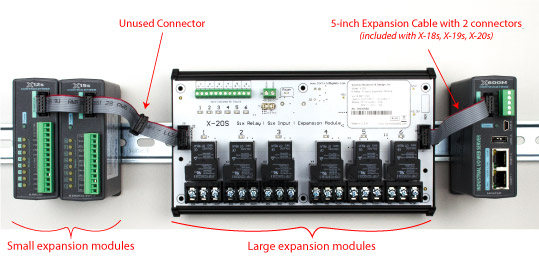

Expansion cables (10-conductor ribbon cable) are necessary to connect expansion modules to an X-400 or X-600M controller. The large expansion modules (X-18s, X-19s, and X-20s) have two expansion ports, and come with a 5-inch expansion cable with two connectors which allows it to connect to the X-400 or X-600M along with other expansion modules.

We recommend to first connect all large expansion modules to the X-400 or X-600M, and then connect any smaller expansion modules (X-11s, X-12s, X-13s, X-15s, X-16s, X-17s, X-21s, X-22s).

Note that the X-18s, X-19s, and X-20s come paired with their own longer expansion cable.


  • 2-33 positions, 2.5-inches between connectors
  • 1.7A max current
  • Custom number of connectors
  • 10-conductor ribbon cable with connectors
