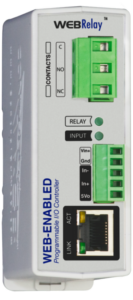

Original WebRelay Single Relay & Input Module with one electromechanical relay, one optically isolated input, and built-in web server for remote control

Trust Icons: 5 year warranty, 30 day return policy, Made and, supported in the U.S.A.

Price range: $169.99 through $199.99

The original WebRelay™ offers exactly what its name suggests, a web-controlled relay with a simple browser-based GUI. It is an electromechanical relay featuring a built-in web server and optically isolated input that can be used to monitor dry contacts or control industrial and commercial equipment.

1 Relay

1 Digital Input

Note: This is the original WebRelay. See the new WebRelay with the latest 400 series firmware.

Frequently Bought Together

Power Supply | 12VDC

24V DIN Rail Power Supply

GRI-29C Indoor Magnetic Contact Sensor

Vegapoint 11 Ultra-Compact Capacitive Limit Switch

VEGAPOINT 11 Capacitive Limit Switch

Part Number

In Stock, Ready to Ship

Time Tested Since 2005

The Original WebRelay serves as the standard for controlling and monitoring devices from the comfort of your web browser. This simple controller is remote accessible, easy to integrate and ideal in applications where a manual or API-controlled relay is needed.

WebRelay Features

Simple Web Dashboard
Password Protected
Remote Relay Control

WebRelay Applications

Pump & Motor Control
Lighting Control
Security Lock Systems

Part Numbers:

X-WR-1R12-1I-I (standard 9-28VDC line power)
X-WR-1R12-1I-E (POE and/or standard 9-28VDC line power)

Need Help Choosing the Right Product?

Let our Sales Engineers identify the right solution for your application.

WebRelay Case Studies

View All Case Studies

Specifications

Models

X-WR-1R12-1I-I
X-WR-1R12-1I-E

Power Requirements

Voltage:
- X-WR-1R12-1I-I: 9-28VDC
- X-WR-1R12-1I-E: POE and/or 9-28VDC
Max Current: 460mA Max

Relay Contacts

Number of Relays: 1
Max Voltage: 240VAC, 30VDC
Max Current: 12A
Contact Type: SPDT (Form C)
Load Type: General Purpose
Contact Resistance: < 30 milliohms initial
Contact Material: AgSnO2
Electrical Life: 100K cycles (Typical)
Mechanical Life: 10M cycles (Typical)
Environmental Rating: Over voltage Category II, Pollution Degree 2
Relay Modes: ON/OFF or Pulsed
Pulse Timer Duration: 0.1 to 86,400 Seconds (1-day)

Digital Inputs

Number of Inputs: 1
Type: Optically-Isolated
Voltage Range: 4-26 VDC
Current: 950uA @ 4V, 8.5mA @ 26V
Minimum Hold Time: 62.5mS
Input Isolation: 1500V
Input Functions: Monitor, Local Relay Control, Remote Relay Control

Network

Type: 10/100 Base-T Ethernet Port

Connectors

Relay: 3-Position Removable
Power/Input: 5-Position Removable
Network: 8-pin RJ-45

LED Indicators

Number of LEDs: 4
- Digital input voltage applied
- Relay coil energized
- Network linked
- Network activity

Physical

Operating Temperature: -40°F to 135°F (-40°C to 57°C)
Storage Temperature: -40°F to 185°F (-40°C to 85°C)
Humidity: 5% to 95% non condensing
Size:
- 1.41in (35.7mm) wide
- 3.88in (98.5mm) tall
- 3.1in (78mm) deep (not including connector)
Weight: 5 oz (142 grams)
Enclosure Material: Lexan 940 Polycarbonate Plastic
Enclosure Flame Rating: UL94 V0

Protocols

HTTP, XML, Modbus TCP/IP

Password Settings

Password protection on setup page: Yes
Password protection on control page: Optional
Password Encoding: Base 64
Password Length: 10 Characters

Electromagnetic Compliance

IEC CISPR 22, CISPR 24
EU EN55024, EN55022
FCC 47CFR15 (-I Models class B, -E POE Model Class A)

Product Safety Compliance

UL 61010-1 (Electrical Equipment for Measurement, Control, and Laboratory Use) – Models: X-WR-1R12-1I-I and X-WR-1R12-1I-E

Manuals & Downloads

Users Manuals

Original WebRelay (X-WR-1R12-1I-I/E) Manual (Rev 4.1)

WebRelay Quick Start Guide (PDF)

Archived Users Manuals

Older WebRelay (XRDI-WR1) Manual (Rev 2.0)

Utilities & Sample Code

CBW Settings Utility
This utility allows you to download settings and/or events from one of our stand-alone ControlByWeb products to your computer, and then upload them to a device of the same model number, and firmware revision. (Not compatible with the X-600 Modular Series.)

Example Visual Basic code to Monitor and Control WebRelay (for custom apps) (408.0 KB)

LabVIEW example to Monitor and Control WebRelay (for custom apps) (137.0 KB)

Example Linux code to Monitor and Control WebRelay (for custom apps) (7.18 KB)

Controlling WebRelay from a stand alone web server(6 KB)

Controlling WebRelay from a stand alone web server using AJAX(71 KB)

For your convenience we have set up a live WebRelay unit for testing and evaluation. By clicking the links below you have full access to this live unit. You can make changes to the configuration and settings through the setup pages and you can control WebRelay through its control page. The control page allows you to change the state of the relay and view the current state of the input.

Self Guided Demo With Login and Video

*Setup page login information:

Username: admin

Password: webrelay

Control Page

Setup Pages*

Digital Input Control Page

WebRelay live demonstration setup

Live Demo With One of Our Sales Engineers

Let’s make it easy with a live demo and screen sharing.

Set up a one-on-one Q & A with one of our experts. We’ll help you find the best solutions for your next project and walk you through a demonstration.

Low on time? Watch a pre-recorded demo instead:

WebRelay Series Setup and Programming Demo

WebRelay Setup

The diagram illustrates how this demonstration is wired. Nothing is connected to the relay contacts; however, you can still turn the relay on and off to see how it works. The input state only changes when a voltage is applied to the input. For this demonstration, we have connected one of our X-332 controllers to the input of the WebRelay. You can apply a voltage to the input of the WebRelay by accessing the control page for the X-332 (Digital Input Control Page). Important Info about devices resetting

Important Information

Multiple users may be accessing this device simultaneously so the device can change while you are using it.
This unit will be reset to factory defaults daily at 2:30AM MST.
Please DO NOT change network or password settings.
