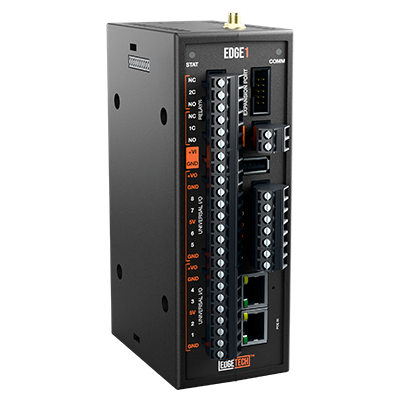

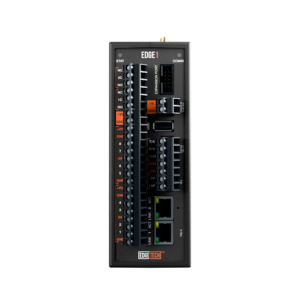

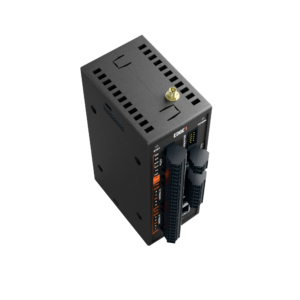

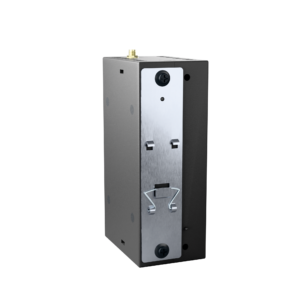

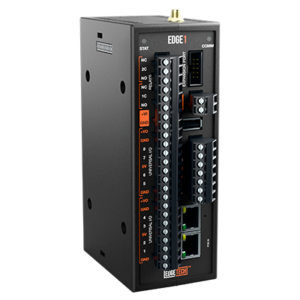

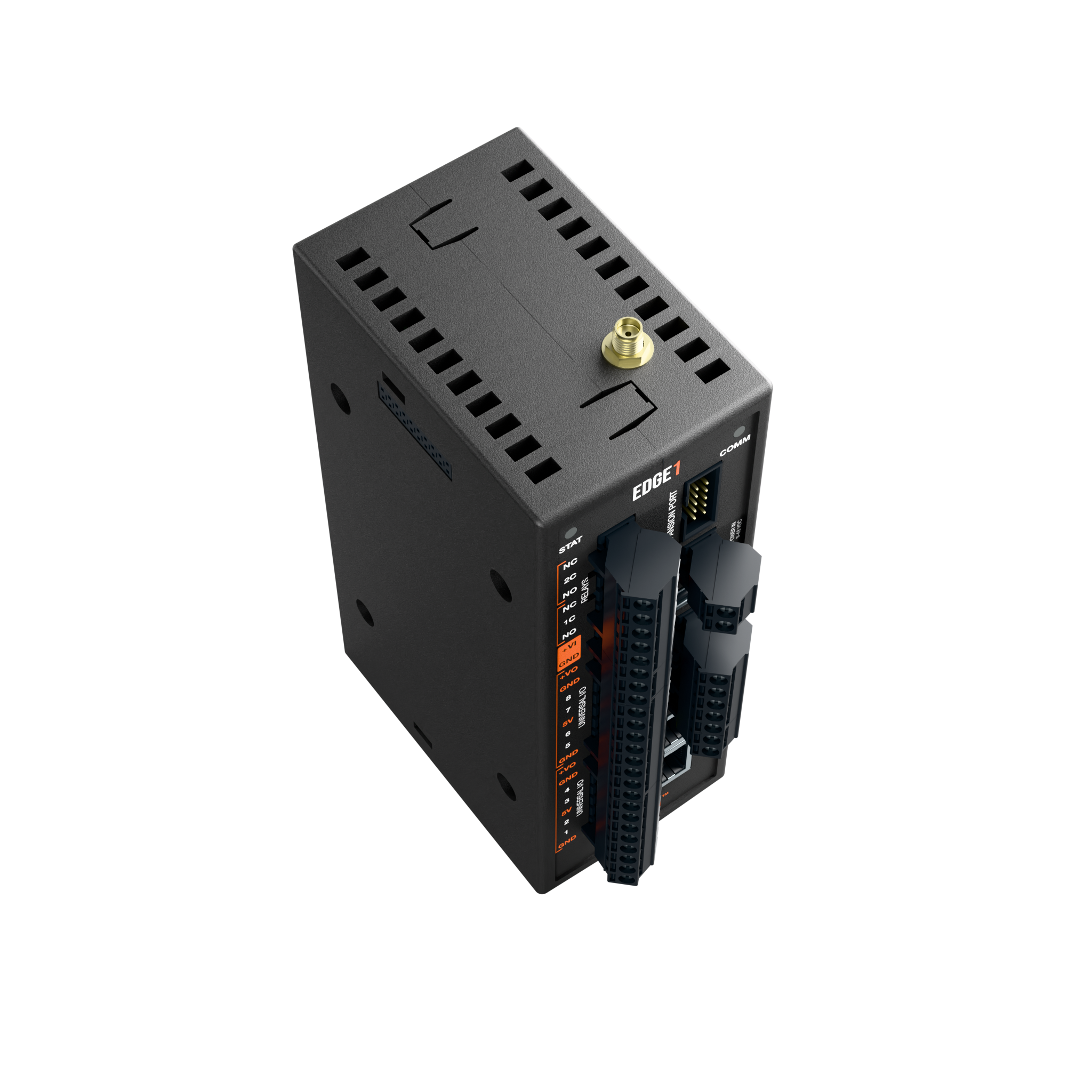

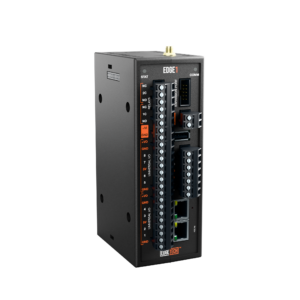

EDGE1 | Controller with onboard Universal I/O

The EdgeTech EDGE1 is a modular industrial controller with eight universal I/O channels, two SPDT relays, 1-Wire support, and serial communication. Designed for flexible data acquisition and control, it connects physical equipment, sensors, and I/O with industrial software, industrial systems, cloud platforms, and enterprise applications. Its browser-based interface allows users to build custom dashboards and program advanced control logic with JavaScript without installing or licensing additional software. The EDGE1 can support up to 32 EdgeTech I/O expansions, providing a scalable platform for applications that require local intelligence, open integration, and expandable I/O.
  • 8 Universal I/O & 2 SPDT Relays
  • Supports Up to 32 I/O Expansions
  • Ethernet, Wi-Fi & Optional Cellular
  • Single Pair Ethernet (10BASE-T1L)
Flexible, Expandable I/O. Connect EdgeTech I/O expansions to add universal I/O, digital inputs, relays, and Power over Ethernet connections as your application grows.
Intelligence at the Edge. Execute control logic, collect data, create custom dashboards, and manage automation directly on the controller, closer to the assets and processes being monitored.





This product is currently out of stock and unavailable.

Talk to a Specialist Explore EdgeTech

Flexible Monitoring, Control & Connectivity at the Edge

From monitoring equipment and collecting sensor data to automating processes and integrating with existing systems, Edge1 provides the flexibility to support a wide range of applications. Its combination of configurable I/O, local intelligence, and expandable connectivity allows users to adapt to changing project requirements without being limited by fixed hardware configurations.

EdgeTech Features

  • Flexible & Expandable I/O
  • Software-Configurable Universal I/O
  • Local Processing & Control
  • Open Protocol & System Integration
  • Single Pair Ethernet (SPE)
  • Enhanced Data Collection & Visualization

EdgeTech Applications

  • Industrial Monitoring & Automation
  • Remote Equipment Monitoring
  • Building & Facility Management
  • Security & Access Control
  • Environmental & Sensor Monitoring
  • OEM & System Integration

Edge Programmable, Locally Executed

Configure and program EdgeTech directly through your browser without separate licensed programming software. Embedded JavaScript supports local control and automation, while built-in dashboards, data visualization, reporting, external log storage, and PID capability help you manage demanding applications.

Tag-Based Architecture: Organize I/O points and data from sensors, external devices, and web sources through a consistent tag structure. This unified approach makes complex control and integration projects easier to build, expand, and maintain.

Need Help Choosing the Right Product?

Let our Sales Engineers identify the right solution for your application

Specifications

Product SKUs
      • EDGE1: EDGE Main board with WiFi and E8U2R I/O board
      • EDGE1-C4: EDGE Main board with WiFi, LTE-C4 Modem and E8U2R I/O board
      • EDGE1-5G: EDGE Main board with WiFi, LTE-5G modem and E8U2R I/O board

Universal I/Os

      • Count: 8
      • Digital Input Mode:
        • Input Voltage Range: 9-48V
        • Wet contact up to 48V
        • Dry contact with internal pullups
        • Frequency counting to 5KHz using 32-bit counters
        • Supervised
      • Digital Output Mode:
        • Source or Sink up to 1.5A @ 5V or VIN to 48V
        • PWM compatible
      • Analog Input Mode:
        • 16-bit ADC
        • Voltage: -2.5-2.5V, 0-2.5V, 0-10V
        • Current: 0-25mA, 100Ω RSENSE
        • RTD 2-wire measurement
        • Resistance measurement 0-200KΩ
        • Millivolt AC frequency counting, maximum 20KHz input frequency (available input, 1 only)
      • Analog Output Mode:
        • 13-bit DAC
        • 0-10V
        • 0-25mA
Temperature Sensors
      • Max Count: 16 per UI/O, dependent on total cable length
      • Type: Dallas Semiconductor DS18B20
      • Temp Range: -67°F to 257°F (-55°C to 125°C)
      • Accuracy: ±0.5°C (-10°C to 85°C)
Relays
  • Count: 2
  • Type: Form C
  • Max Current: 12A @ 125VAC, 12A @ 28VDC
Power
  • Range:
    • 9-48VDC
    • 9-60VDC with restrictions
  • PoE+:
    • 11-48VDC
    • 30W Type 2, Class 4
    • IEEE 802.3af/at/bt
Connections
  • Input: RS-485 or RS-232
  • WiFi Antenna: Male SMA Connector (On all EDGE1 Units)
  • Cell Antenna: Additional SMA connector (Cell versions only)
Processor & Storage
  • Processor: Dual core, 240 MHz, 16 MB Flash, 16 MB RAM
  • Software:
    • Real-Time OS based on Free RTOS
    • Embedded JavaScript API
  • Storage:
    • Internal Nonvolatile Flash
    • USB-A Drive
Safety
  • Electromagnetic Compliance:
    • IEC CISPR 22
    • CISPR 24
    • EU EN55024
    • EU EN55022
    • FCC 47CFR15 (Class B)
  • Product Safety Compliance:
    • IEC 61010-1
Networking
  • Ethernet: RJ45, Dual 10/100 Base-T Ports
  • Single Pair Ethernet: 802.3cg 10Base-T1L 10 Mbps
  • IP Config: IPV4 or IPV6, Static or DHCP
  • WiFi: 2.4 GHz (802.11b/g/n)
  • Bluetooth: BLE 5
  • Cellular: LTE-CatM, Cat1, or Cat4
  • LoRaWAN: Sensor & Mesh Communication
Expansion

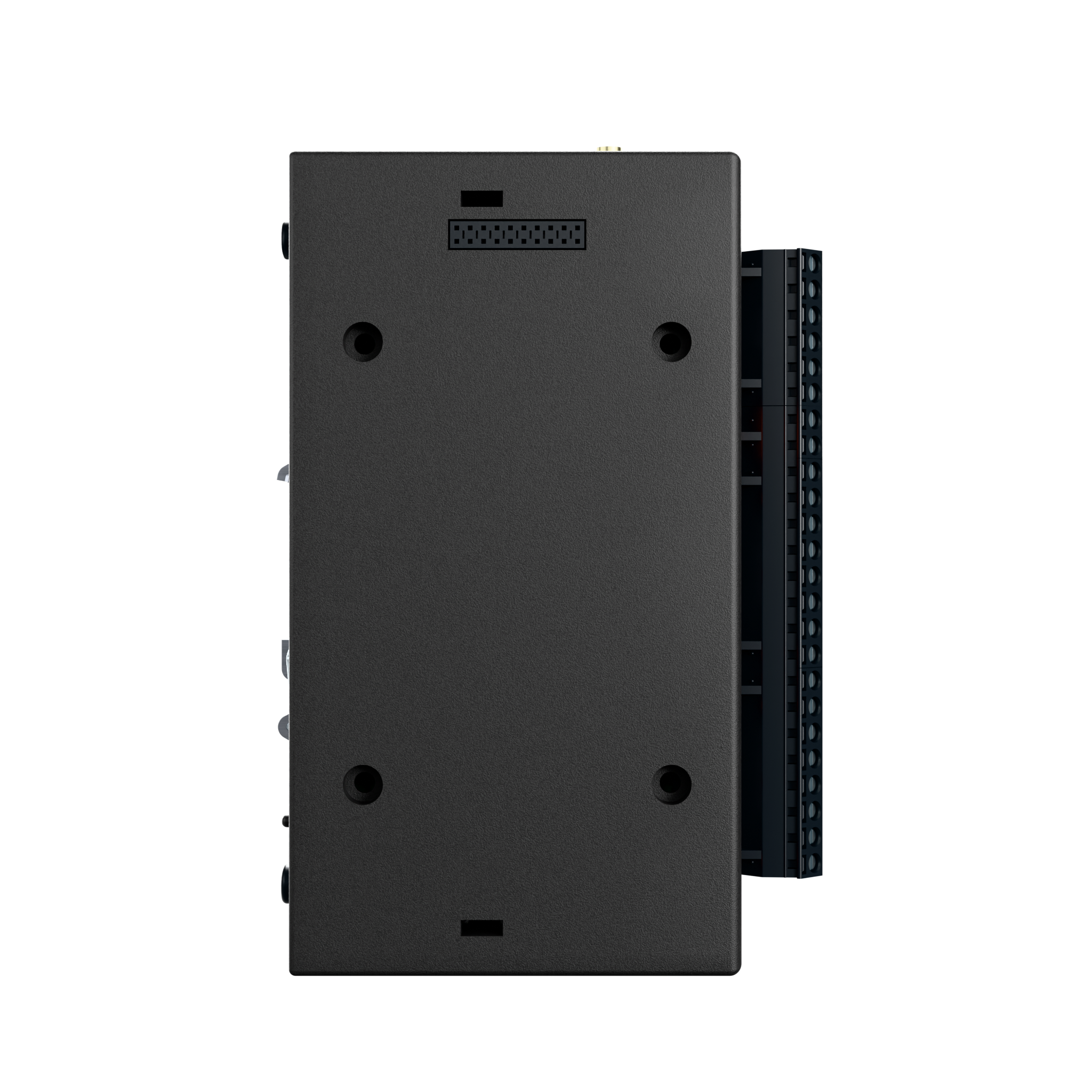

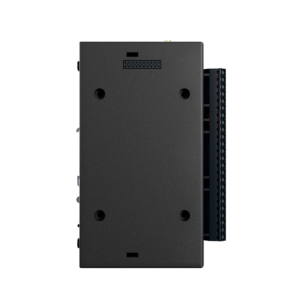

  • Side Port: CAN 2.0B
  • Compatibility: Expansion modules (32 max)
  • Front Port: Ribbon cable, 10-conductor, polarized, 2×5-position, 0.100″ pitch
  • Compatibility: ControlByWeb Expansion Modules
Physical
  • Operating Temperature: -40°F to 150°F (-40°C to 65.5°C)

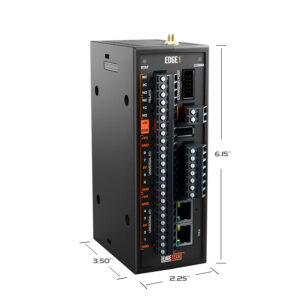

  • Size:

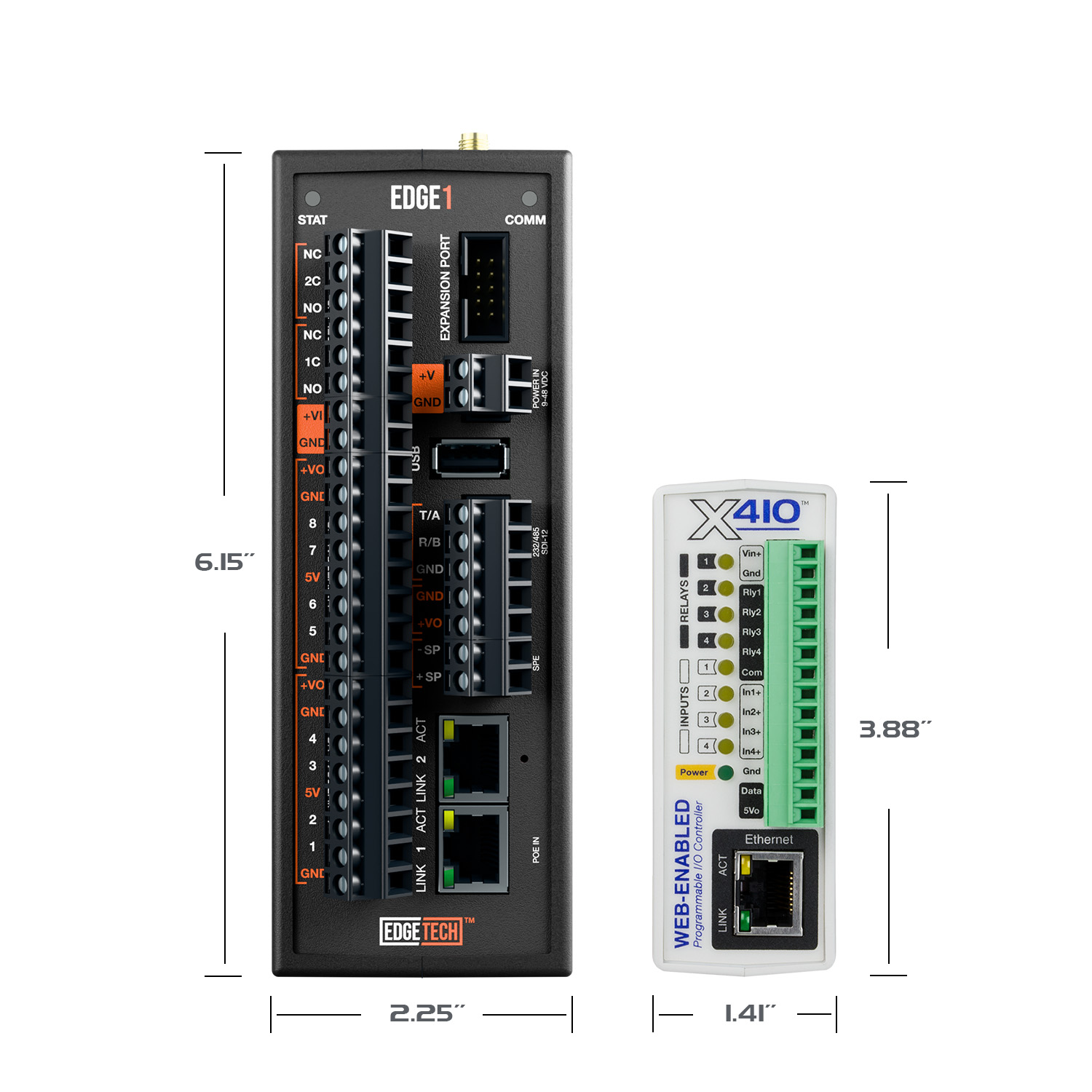

    • 6.15in (156mm) H x 3.5in (86mm) D x 2.25in (57mm) W
  • Weight: 14.5 Oz (412 g)
  • Enclosure Material: Lexan 940 Polycarbonate Plastic
  • Enclosure Flame Rating: UL94 V0

Manuals & Downloads

Data Sheet

EdgeTech Controllers (PDF)
