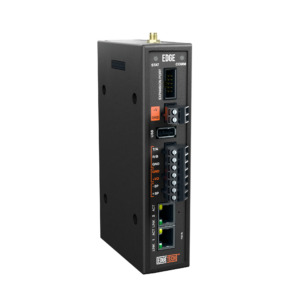

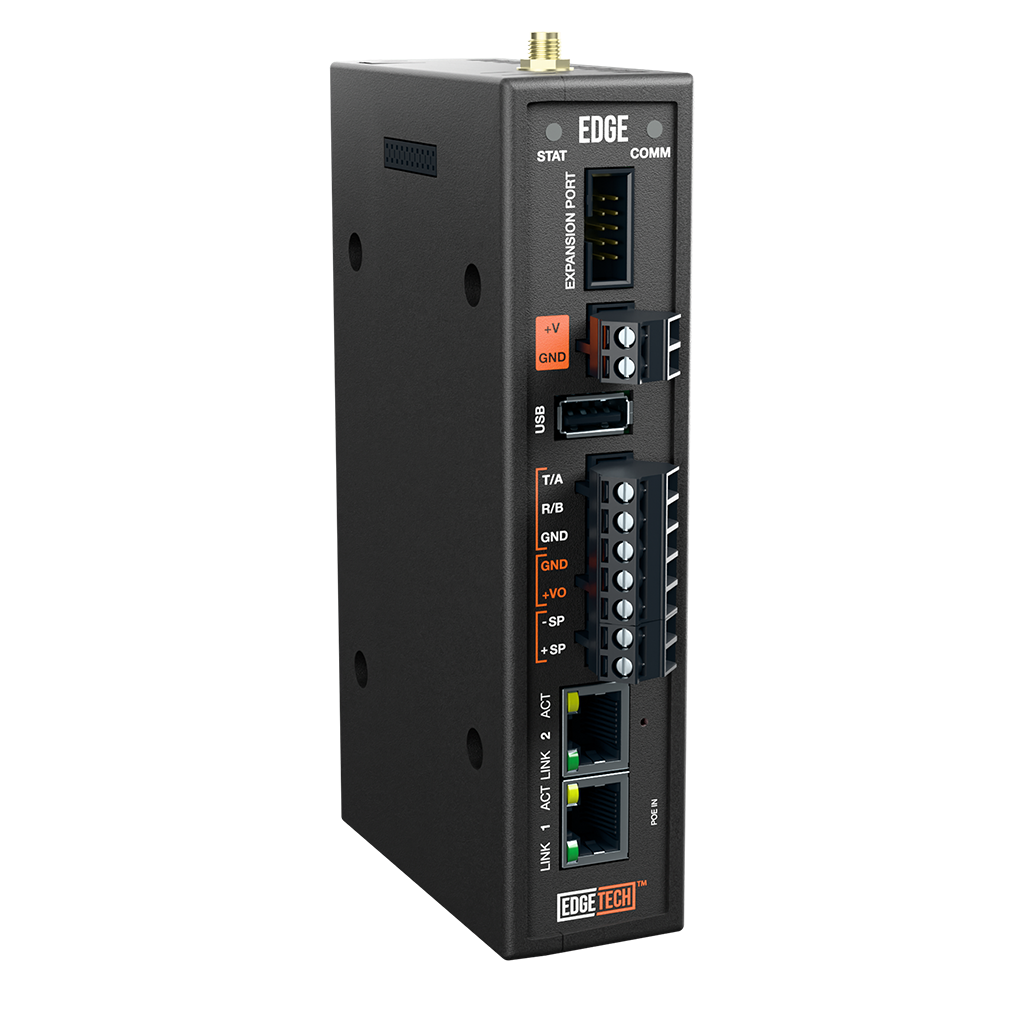

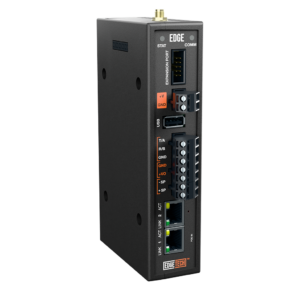

EDGE | Expandable I/O Controller

The EdgeTech EDGE is a modular industrial controller designed for applications that require local processing and flexible, expansion-based I/O. It connects physical equipment, assets, and sensors with industrial software, SCADA and industrial systems, cloud platforms, and enterprise applications while allowing the system’s I/O configuration to be tailored to the application. Its browser-based interface supports custom dashboards, data visualization, and JavaScript programming without requiring additional software or licensing fees. Pair the EDGE with EdgeTech I/O expansions to create a scalable control and data-acquisition system with the exact combination of inputs, outputs, and relays your application requires.
  • Expansion-Based I/O Architecture
  • Supports Up to 32 I/O Expansions
  • Browser-Based Dashboards & Programming
  • Single Pair Ethernet (10BASE-T1L)
Build the System You Need. The EDGE provides the processing and connectivity of the EdgeTech platform without onboard universal I/O or relays. Only add the I/O expansions required for your application.
Intelligence at the Edge. Collect data, execute custom logic, visualize system conditions, and connect physical equipment with other industrial and enterprise systems directly from the controller.


This product is currently out of stock and unavailable.

Talk to a Specialist Explore EdgeTech

Flexible Monitoring, Control & Connectivity at the Edge

From monitoring equipment and collecting sensor data to automating processes and integrating with existing systems, the EDGE controller provides the flexibility to support a wide range of applications. Its combination of configurable I/O, local intelligence, and expandable connectivity allows users to adapt to changing project requirements without being limited by fixed hardware configurations.

EDGE Controller Features

  • Flexible & Expandable I/O
  • Software-Configurable Universal I/O
  • Local Processing & Control
  • Open Protocol & System Integration
  • Single Pair Ethernet (SPE)
  • Enhanced Data Collection & Visualization

EdgeTech Applications

  • Industrial Monitoring & Automation
  • Remote Equipment Monitoring
  • Building & Facility Management
  • Security & Access Control
  • Environmental & Sensor Monitoring
  • OEM & System Integration

Edge Programmable, Locally Executed

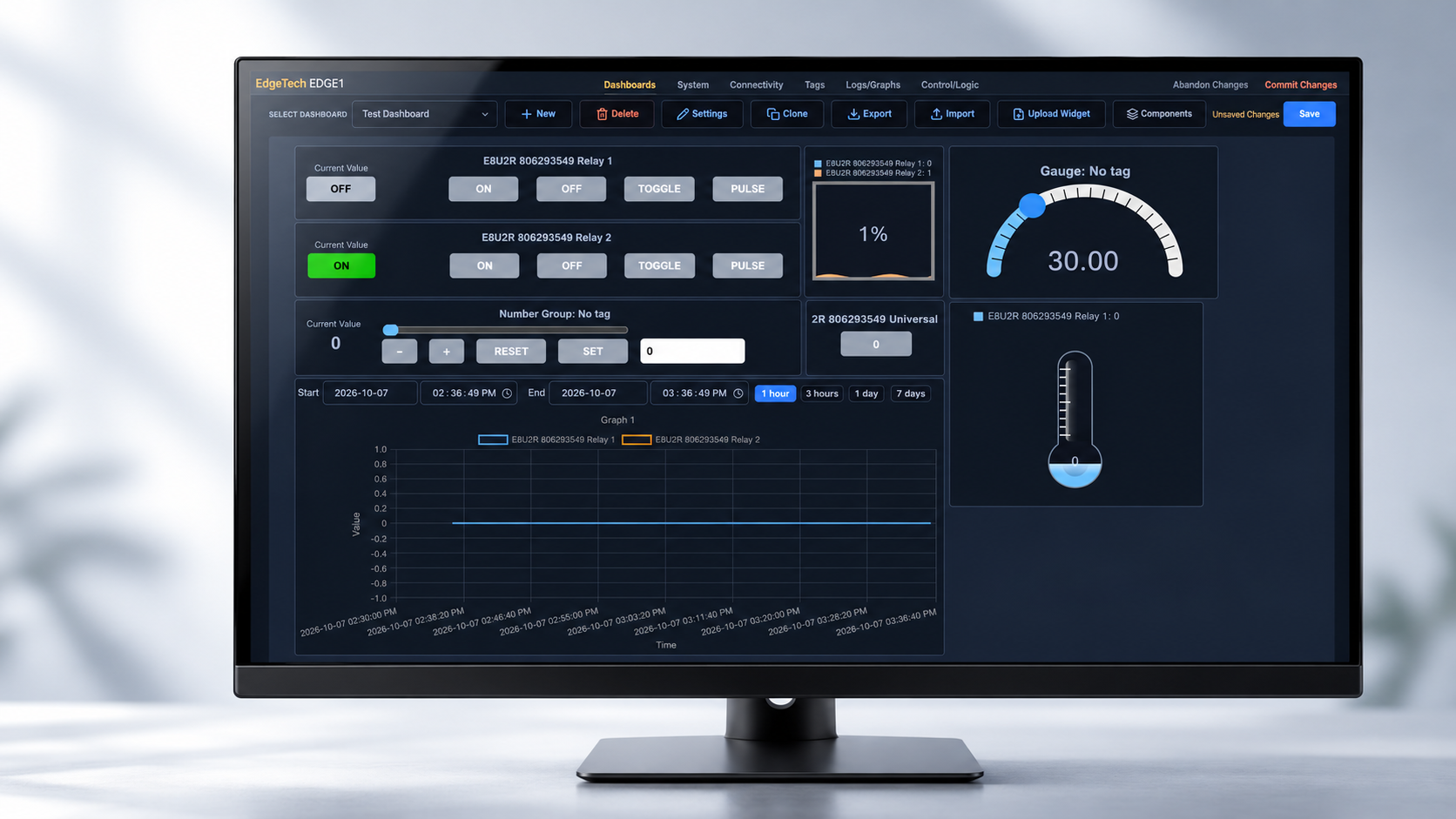

Configure and program EdgeTech devices directly through your browser without separate licensed programming software. Embedded JavaScript supports local control and automation, while built-in dashboards, data visualization, reporting, external log storage, and PID capability help you manage demanding applications.

Tag-Based Architecture: Organize I/O points and data from sensors, external devices, and web sources through a consistent tag structure. This unified approach makes complex control and integration projects easier to build, expand, and maintain.

Need Help Choosing the Right Product?

Let our Sales Engineers identify the right solution for your application



Specifications

Product SKUs
  • EDGE: EDGE Main board with WiFi
  • EDGE-C4: EDGE Main board with WiFi, LTE-C4 modem
  • EDGE-5G: EDGE Main board with WiFi, LTE-5G modem
Power
  • Range:
    • 9-48VDC
    • 9-60VDC with restrictions
  • PoE+:
    • 11-48VDC
    • 30W Type 2, Class 4
    • IEEE 802.3af/at/bt
Connections
  • Input: RS-485 or RS-232
  • WiFi Antenna: Male SMA Connector (On all EDGE Units)
  • Cell Antenna: Additional SMA connector (Cell versions only)
Processor & Storage
  • Processor: Dual core, 240 MHz, 16 MB Flash, 16 MB RAM
  • Software:
    • Real-Time OS based on Free RTOS
    • Embedded JavaScript API
  • Storage:
    • Internal Nonvolatile Flash
    • USB-A Drive

Networking
  • Ethernet: RJ45, Dual 10/100 Base-T Ports
  • Single Pair Ethernet: 802.3cg 10Base-T1L 10 Mbps
  • IP Config: IPV4 or IPV6, Static or DHCP
  • WiFi: 2.4 GHz (802.11b/g/n)
  • Bluetooth: BLE 5
  • Cellular: LTE-CatM, Cat1, or Cat4
  • LoRaWAN: Sensor & Mesh Communication
Expansion
  • Side Port: CAN 2.0B
  • Compatibility: Expansion modules (32 max)
  • Front Port: Ribbon cable, 10-conductor, polarized, 2×5-position, 0.100″ pitch
  • Compatibility: ControlByWeb Expansion Modules

Physical
  • Operating Temperature: -40°F to 150°F (-40°C to 65.5°C)

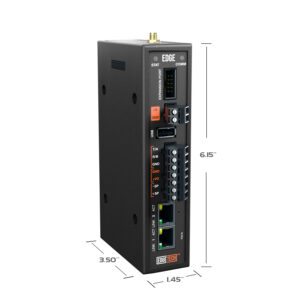

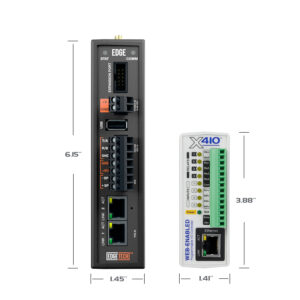

  • Size:
    • 6.15in (156mm) H x 3.5in (86mm) D x 1.45in (37mm) W
  • Weight: 10 Oz (283 g)
  • Enclosure Material: Lexan 940 Polycarbonate Plastic
  • Enclosure Flame Rating: UL94 V0
Safety
  • Electromagnetic Compliance:
    • IEC CISPR 22
    • CISPR 24
    • EU EN55024
    • EU EN55022
    • FCC 47CFR15 (Class B)
  • Product Safety Compliance:
    • IEC 61010-1

Manuals & Downloads

Data Sheet

EdgeTech Controllers (PDF)
